Flanged type double offset butterfly valves

(PA700 series)

Description
Catalog
Design
Classifier
The main overall and mounting dimensions
Specifications

Butterfly valves
catalog

Reference-list

Inquiry form for PA
butterfly valves

Stem extensions for butterfly
valves inquiry form

ПА 732.600.10-01 ПА 732.600.10-01 DN600 PN10

ПА 732.600.10-01
DN 600 PN 10
body material GGG40 iron, disk material GGG40 iron, seat material EPDM

by request

Price:
by request

Order

ПА 732.400.10-01 ПА 732.400.10-01 DN400 PN10

ПА 732.400.10-01
DN 400 PN 10
body material GGG40 iron, disk material GGG40 iron, seat material EPDM

by request

Price:
by request

Order

ПА 732.300.10-01 ПА 732.300.10-01 DN300 PN10

ПА 732.300.10-01
DN 300 PN 10
body material GGG40 iron, disk material GGG40 iron, seat material EPDM

by request

Price:
by request

Order

ПА 732.500.10-01 ПА 732.500.10-01 DN500 PN10

ПА 732.500.10-01
DN 500 PN 10
body material GGG40 iron, disk material GGG40 iron, seat material EPDM

by request

Price:
by request

Order

ПА 732.200.10-01 ПА 732.200.10-01 DN200 PN10

ПА 732.200.10-01
DN 200 PN 10
body material GGG40 iron, disk material GGG40 iron, seat material EPDM

by request

Price:
by request

Order

ПА 732.1000.10-01 ПА 732.1000.10-01 DN1000 PN10

ПА 732.1000.10-01
DN 1000 PN 10
body material GGG40 iron, disk material GGG40 iron, seat material EPDM

by request

Price:
by request

Order

ПА 732.800.10-01 ПА 732.800.10-01 DN800 PN10

ПА 732.800.10-01
DN 800 PN 10
body material GGG40 iron, disk material GGG40 iron, seat material EPDM

by request

Price:
by request

Order

ПА 732.600.16-01 ПА 732.600.16-01 DN600 PN16

ПА 732.600.16-01
DN 600 PN 16
body material GGG40 iron, disk material GGG40 iron, seat material EPDM

by request

Price:
by request

Order

ПА 732.250.10-01 ПА 732.250.10-01 DN250 PN10

ПА 732.250.10-01
DN 250 PN 10
body material GGG40 iron, disk material GGG40 iron, seat material EPDM

by request

Price:
by request

Order

ПА 732.800.16-01 ПА 732.800.16-01 DN800 PN16

ПА 732.800.16-01
DN 800 PN 16
body material GGG40 iron, disk material GGG40 iron, seat material EPDM

by request

Price:
by request

Order

ПА 731.100.10-01 ПА 731.100.10-01 DN100 PN10

ПА 731.100.10-01
DN 100 PN 10
body material GGG40 iron, disk material GGG40 iron, seat material NBR

by request

Price:
by request

Order

ПА 731.125.10-01 ПА 731.125.10-01 DN125 PN10

ПА 731.125.10-01
DN 125 PN 10
body material GGG40 iron, disk material GGG40 iron, seat material NBR

by request

Price:
by request

Order

Pages: ← Last Next →
1 2 3 4 5 ... 99 100 101 102 103 (All: 1228)

Description

Structurally valves of series PA700 are made with a double offset of the disk - relative to the valve body axis and the pipeline axis. This design reduces wear of the seat parts and reduces the torque required to open and close the valve. A soft seat of EPDM, NBR or Viton is manufactured in the form of a removable O-ring on the disc, which simplifies its quick replacement in case of wear and extends the valve service life.

With opening angles up to 20-70° valves can be used for throttling the flow of working medium Connection type is flanged.

Valves are designed for installation on process pipelines in metallurgical, gas processing, petrochemical, oil refining, chemical industries, fuel and energy complex enterprises, housing and utilities facilities, water supply and sanitation systems.

Manufacture and supply:	Acc. to TU 3700-001-55604618-2013
Type of construction:	Flanged butterfly valves with double offset and elastomer seat
Nominal diameter:	DN 50 – DN 2400 mm
Nominal pressure:	- PN 6, 10, 16, 25 kgf/cm2
Temperature of working medium:	Up to +200 °С depending on the seat material
Operation:	– gearbox DN 100-2400 mm – electric or pneumatic actuator DN 100-2400 mm
Leakage class:	«А» acc. to GOST 9544-2015
Main working mediums:	Water, oil, oil products, water-gas-oil mixtures, drainage and sewage, sea water
Connection type:	- flanged Connecting flanges according to GOST 33259-2015
Installation position:	Any, except the position "electric actuator down" for valves with electric actuator
Flow direction of the working mediums:	Unidirectional, along the arrow on the valve body, bidirectional upon request
Flow rate of the working medium:	Not more than 1,0-5,0 m/s (for liquids)
Climatic version:	У, УХЛ, Т, ТМ, ТВ acc. to GOST 15150-69
Top flange:	Acc. to ISO 5211

Design

Position	Description
1	Body
2	Disk
3	Seat
4	Pressure ring
5	Stem
6	Packing
7	Packing gland flange
8	Bolt
9	Gearbox

Seat materials	Description
NBR	- resistance to oils, lubricants, fuels, natural gas; not resistant to alkali and acid environments, water vapor
EPDM	- resistance to water, alkalis, acids, abrasive materials, air; not resistant to fuels and lubricants, fats
Viton	- resistance to oils, gasoline, diz.fuel, diluted acids and alkalis of medium concentration; - not resistant to hot water, steam
PTFE	Universal thermal and chemical resistance

Material of body and disk	Description
GGG40	- Ductile cast iron with spheroidal graphite;
WCB	- Сarbon steel for non-corrosive mediums;
CF8	- Corrosion resistant steel, used in aggressive mediums and at low temperatures.
CF8M	- Corrosion resistant steel with molybdenum, used in very aggressive mediums and at low temperatures.

Classifier

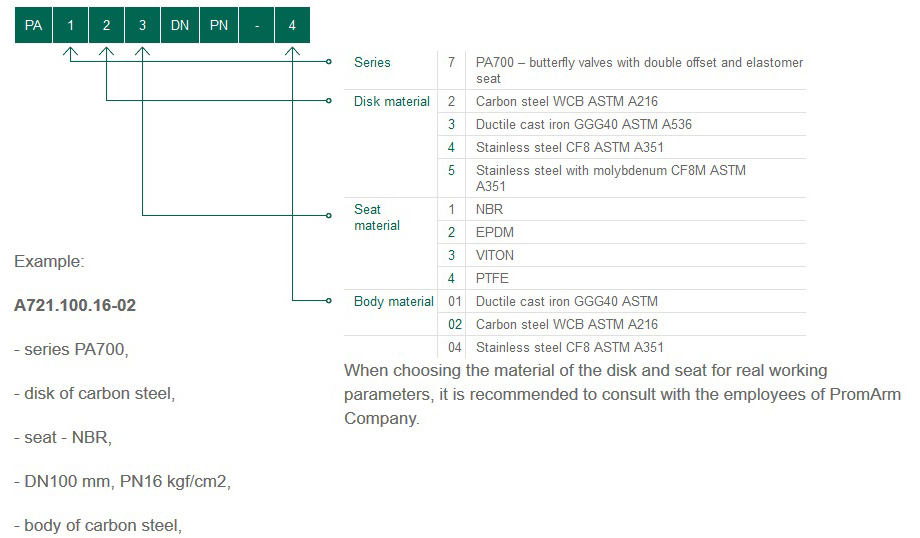

Designation of PA700 series butterfly valves. Image

The main overall and mounting dimensions

Flanged connection

DN 50-500 mm with gearbox	DN 600-2400 mm with gearbox

DN	PN10
	Dimensions, mm						Weight with gearbox, kg
	A	B	L		D1	n*d	Weight with gearbox, kg
	A	B	short	long	D1	n*d	short	long
50	82,5	150	108	150	125	4×18	16	20
65	92,5	165	112	170	145	4×18	17	21
80	100	170	114	180	160	8×18	17	21
100	95	230	127	190	180	8×18	25	30
125	110	257	140	200	210	8×18	28	34
150	150	300	140	210	240	8×22	32	38
200	200	350	152	230	295	8×22	42	50
250	240	370	165	250	350	12×22	60	72
300	270	427	178	270	400	12×22	90	108
350	310	450	190	290	460	16×22	130	156
400	352	525	216	310	515	16×26	190	228
450	360	543	222	330	565	20×26	250	300
500	390	585	229	350	620	20×26	300	360
600	450	643	267	390	725	20×30	430	516
700	520	737	292	430	840	24×30	500	600
800	590	885	318	470	950	24×33	690	828
900	640	975	330	510	1050	28×33	950	1140
1000	710	1130	410	550	1160	28×33	1080	1296
1200	835	1220	470	630	1380	32×39	1900	2280
1400	1000	1430	530	710	1590	36×45	2600	3120
1600	1080	1500	600	790	1820	40×52	3500	4200
1800	1215	1650	670	870	2020	44×52	4500	5400
2000	1330	1720	760	950	2230	48×52	6100	7320
2200	1530	1900	800	1000	2440	52×56	7100	8520
2400	1625	2070	850	1100	2650	56х56	8800	10560

DN	PN16
	Dimensions, mm						Weight with gearbox, kg
	A	B	L		D1	n*d	Weight with gearbox, kg
	A	B	short	long	D1	n*d	short	long
50	82,5	150	108	150	125	4×18	16	20
65	92,5	165	112	170	145	4×18	17	21
80	100	170	114	180	160	8×18	17	21
100	95	230	127	190	180	8×18	25	30
125	110	257	140	200	210	8×18	28	34
150	150	300	140	210	240	8×22	32	38
200	200	350	152	230	295	12×22	42	50
250	240	370	165	250	355	12×26	60	72
300	270	427	178	270	410	12×26	90	108
350	310	450	190	290	470	16×26	130	156
400	352	525	216	310	525	16×30	190	228
450	360	543	222	330	585	20×30	250	300
500	390	585	229	350	650	20×33	300	360
600	450	643	267	390	770	20×39	430	516
700	520	737	292	430	840	24×39	500	600
800	590	885	318	470	950	24×39	690	828
900	640	975	330	510	1050	28×39	950	1140
1000	710	1130	410	550	1170	28×45	1080	1296
1200	835	1220	470	630	1390	32×52	1900	2280
1400	1000	1430	530	710	1590	36×52	2600	3120
1600	1080	1500	600	790	1820	40×56	3500	4200
1800	1215	1650	670	870	2020	44×56	4500	5400
2000	1330	1720	760	950	2230	48×62	6100	7320
2200	1530	1900	800	1000	2440	52×62	7100	8520
2400	1625	2070	850	1100	2650	56х62	8800	10560

DN	PN25
	Dimensions, mm
	A	B	L	D1	n*d	Weight with gearbox, kg
200	200	350	230	310	12×26	50
250	240	370	250	370	12×30	72
300	270	427	270	430	16×30	108
350	310	450	290	490	16×33	156
400	352	525	310	550	16×33	228
450	360	543	330	600	20×33	300
500	390	585	350	660	20×39	360
600	450	643	390	770	20×39	516
700	520	737	430	875	24×45	600
800	590	885	470	990	24×45	828
900	640	975	510	1090	28×52	1140
1000	710	1130	550	1210	28×56	1296
1200	835	1220	630	1420	32×56	2280
1400	1000	1430	710	1640	36×62	3120
1600	1080	1500	790	1860	36х62	4200

Top flange's dimensions and torque for choosing actuator

DN	PN10		PN16		PN25
DN	Top flange acc. to ISO	Torque, N*m	Top flange acc. to ISO	Torque, N*m	Top flange acc. to ISO	Torque, N*m
50	F07	50	F07	50	F07	70
65	F07	80	F07	80	F07	90
80	F07	105	F07	105	F07	120
100	F07	100	F07	160	F07	250
125	F07	150	F07	230	F07	360
150	F07	200	F07	320	F07	480
200	F12	297	F12	422	F12	652
250	F12	498	F12	711	F12	1099
300	F12	779	F12	1122	F12	1700
350	F12	1122	F12	1621	F12	2484
400	F14	1548	F14	2247	F14	3445
450	F14	2060	F14	3002	F14	4609
500	F16	2563	F16	3899	F16	5990
600	F25	4211	F25	6158	F25	9827
700	F25	6189	F25	9106	F25	14513
800	F25	8683	F25	12845	F25	20444
900	F25	11463	F25	17038	F25	27088
1000	F30	15553	F30	23145	F30	38672
1200	F30	25020	F30	37507	F35	62260
1400	F35	37594	F35	59348	F40	89461
1600	F40	53749	F40	84939	F48	128416
1800	F40	75789	F48	119398		180446
2000	F48	100777	F48	158931
2200	F60	130633		206205
2400	F60	165741		261843

The data is approximate, for correct selection of electrical and pneumatic actuators it is recommended to consult with the representatives of PromArm company. Stem dimensions and shape are clarified upon request. For DN500 and higher, installation of multiturn actuators through worm gearbox is possible.

Specifications

Flow capacity of valves Kv, m³/h

DN	100	125	150	200	250	300	350	400	450	500	600
Kv	620	930	1310	2500	4080	6030	8410	11140	14270	17800	24843
DN	700	800	900	1000	1200	1400	1600	1800	2000	2400
Kv	35362	46870	58632	72610	104985	144850	190354	239050	296460	429820

Reliability parameters of butterfly valves

DN	40-100	125,150	200-300	350,400	450-600	700-900	1000-1800
Mean life, cycles, not less than	5200	4200	3800	3200	2200	1800	1700
Warranty life, cycles, not less than	1900	1600	1500	1300	900	700	550

Average life and warranty life of the sealing materials identified when testing valves with water according to GOST 2874-82

When operating valves for working mediums other than water, the reliability parameters are determined by the specific mediums, depending on its parameters.

Warranty

The warranty period is 18 months from the date of putting into operation, but not more than 24 months from the date of sale under condition of observance by the consumer of rules of transportation, installation and operation.

Conservation period - 3 years.

Average service life of body parts is not less than 30 years.

Average life removable parts and components – at least 5 years.
