Butterfly valves PA600 series

Description
Catalog
Design
Classifier
The main overall and mounting dimensions
Specifications

Butterfly valves
catalog

Reference-list

Inquiry form for PA
butterfly valves

Stem extensions for butterfly
valves inquiry form

Каталог продукции

Описание, характеристики

ПА 652.100.16-01 ПА 652.100.16-01 DN100 PN16

ПА 652.100.16-01
DN 100 PN 16
body material GGG40 iron, disk material CF8M stainless steel, seat material EPDM

in stock

Price:
by requets

Order

ПА 652.150.16-01 ПА 652.150.16-01 DN150 PN16

ПА 652.150.16-01
DN 150 PN 16
body material GGG40 iron, disk material CF8M stainless steel, seat material EPDM

in stock

Price:
by requets

Order

ПА 652.200.16-01 ПА 652.200.16-01 DN200 PN16

ПА 652.200.16-01
DN 200 PN 16
body material GGG40 iron, disk material CF8M stainless steel, seat material EPDM

in stock

Price:
by requets

Order

ПА 652.50.16-01 ПА 652.50.16-01 DN50 PN16

ПА 652.50.16-01
DN 50 PN 16
body material GGG40 iron, disk material CF8M stainless steel, seat material EPDM

in stock

Price:
by requets

Order

ПА 652.80.16-01 ПА 652.80.16-01 DN80 PN16

ПА 652.80.16-01
DN 80 PN 16
body material GGG40 iron, disk material CF8M stainless steel, seat material EPDM

in stock

Price:
by requets

Order

ПА 652.250.16-01 ПА 652.250.16-01 DN250 PN16

ПА 652.250.16-01
DN 250 PN 16
body material GGG40 iron, disk material CF8M stainless steel, seat material EPDM

in stock

Price:
by requets

Order

ПА 652.125.16-01 ПА 652.125.16-01 DN125 PN16

ПА 652.125.16-01
DN 125 PN 16
body material GGG40 iron, disk material CF8M stainless steel, seat material EPDM

in stock

Price:
by requets

Order

ПА 652.300.16-01 ПА 652.300.16-01 DN300 PN16

ПА 652.300.16-01
DN 300 PN 16
body material GGG40 iron, disk material CF8M stainless steel, seat material EPDM

in stock

Price:
by requets

Order

ПА 652.65.16-01 ПА 652.65.16-01 DN65 PN16

ПА 652.65.16-01
DN 65 PN 16
body material GGG40 iron, disk material CF8M stainless steel, seat material EPDM

in stock

Price:
by requets

Order

ПА 652.500.16-01 ПА 652.500.16-01 DN500 PN16

ПА 652.500.16-01
DN 500 PN 16
body material GGG40 iron, disk material CF8M stainless steel, seat material EPDM

in stock

Price:
by requets

Order

ПА 652.400.16-01 ПА 652.400.16-01 DN400 PN16

ПА 652.400.16-01
DN 400 PN 16
body material GGG40 iron, disk material CF8M stainless steel, seat material EPDM

in stock

Price:
by requets

Order

ПА 652.350.16-01 ПА 652.350.16-01 DN350 PN16

ПА 652.350.16-01
DN 350 PN 16
body material GGG40 iron, disk material CF8M stainless steel, seat material EPDM

in stock

Price:
by requets

Order

Pages: ← Last Next →
1 2 3 4 5 ... 77 78 79 80 81 (All: 962)

Description

Butterfly valves series PA600 are valves with a symmetrical disk arrangement and wafer-type connection (with smooth or threaded lugs).

Valves of this series are designed and manufactured taking into account the European requirements for design, construction and quality. A distinctive feature of the butterfly valves series PA600 is a soft seat with no hard ring-base, without pin connection between disc and stem. Valve stem fastening in the body excludes its "pulling out" during operation. Valves may be installed in any spatial position.

The design of valves series PA600 is ergonomic, reliable and compact. The design and technological solutions allow repair and maintenance of the valve, replacement of the seat and disk without special equipment and fittings by the technical staff of operating organizations.

Valves series PA600 series are equipped with various versions of electric, pneumatic actuators, sets of mating flanges and fasteners, as required by the customer.

Manufacture and supply:	Acc. to TU 3700-001-55604618-2013
Type of construction:	Butterfly valve with symmetric disk, seat material - soft elastomer
Nominal diameter:	DN 25 – DN 1200 mm
Nominal pressure:	- PN 6, 10, 16 kgf/cm2
Temperature of working medium:	Up to +180 ° С depending on the seat material
Operation:	– handle DN 40-200 mm – gearbox DN 40-1200 mm – electric or pneumatic actuator DN 40-1200 mm
Leakage class:	«А» acc. to GOST 9544-2015
Main working mediums:	Water, air, natural gas and gaseous products, ammonia gas, petroleum products, hydrocarbons, acids, alkalis, alcohols, sea water
Connection type:	- wafer type with smooth lugs; - wafer type with threaded lugs; Connecting flanges according to GOST 33259-2015
Installation position:	Any, except the position "electric actuator down" for valves with electric actuator
Flow direction of the working mediums:	Any
Flow rate of the working medium:	Up to 80 m/s for gases, up to 5 m/s for liquids
Climatic version:	У, УХЛ, Т, ТМ, ТВ acc. to GOST 15150-69
Flow characteristic of valves:	Equal percentage, when opening angles of the disk from 20° to 70° With opening angles up to 60-70° valves can be used for throttling the flow of working medium
Top flange:	Acc. to ISO 5211

PromArm LLC reserves the right to make changes to the design not affecting functional characteristics of the equipment.

Design

Position	Description
1	Body
2	Disk
3	Seat
4	Stem
5.6	Bushing
7	O-ring
8	Rod
9	Handle

Seat materials	Description
NBR	- resistance to oils, lubricants, fuels, natural gas; not resistant to alkali and acid environments, water vapor
EPDM	- resistance to water, steam, alkalis, acids, abrasive materials, air; not resistant to fuels and lubricants, fats
Viton	- resistance to oils, gasoline, diesel fuel, diluted acids and alkalis of medium concentration; - not resistant to ketones, hot water, steam
Silicon	– general resistance to oxidizers. Works well in hot air and gases.

Material of body and disk	Description
GGG40	- Ductile cast iron with spheroidal graphite;
WCB	- Carbon steel for non-corrosive mediums;
GG25	- Grey cast iron for indoor use;
CF8	- Corrosion resistant steel, used in aggressive mediums and at low temperatures.
CF8M	- Corrosion resistant steel with molybdenum, used in very aggressive mediums and at low temperatures.

Classifier

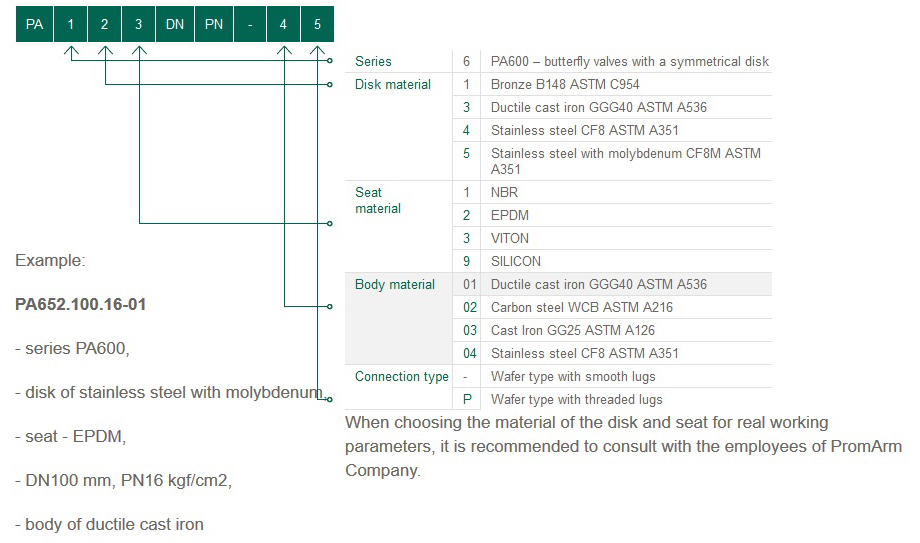

Designation of PA600 series butterfly valves. Image

The main overall and mounting dimensions

Wafer type connection with smooth lugs

DN 40-200 mm with handle

Butterfly valves of PA 600 series. Butterfly valves DN 40 – 200 with handle. Image

DN	Dimensions, mm							Weight with handle, kg
	A	B	L	D1		n*d
	A	B	L	PN10	PN16	PN10	PN16
40	70	133	33	110	110	Four universal holes for PN10, 16		2,5
50	61	141	43	125	125			2,7
65	72	153	46	145	145			3,1
80	87	161	46	160	160			3,5
100	106	179	52	180	180			4,9
125	123	193	56	210	210			6,6
150	137	204	56	240	240			7,1
200	174	247	60	295	295			13,6

DN 40-600 mm with gearbox

Butterfly valves of PA 600 series. Butterfly valve DN 40 – 600 with worm gear. Image

DN	Dimensions, mm							Weight with gearbox, kg
	A	B	L	D1		n*d
	A	B	L	PN10	PN16	PN10	PN16
40	70	133	33	110	110	Four universal holes for PN10, 16		3,5
50	61	141	43	125	125			3,7
65	72	153	46	145	145			4,1
80	87	161	46	160	160			4,5
100	106	179	52	180	180			5,9
125	123	193	56	210	210			8,5
150	137	204	56	240	240			10
200	174	247	60	295	295			16
250	209	280	68	350	355			25
300	253	324	78	400	410			34
350	260	368	78	460	470			61
400	315	400	102	515	525			67
500	379	485	127	620	650			98
600	440	565	154	725	770			143

Wafer type with threaded lugs

DN 40-200 mm with handle

DN	Dimensions, mm							Weight with handle, kg
	A	B	L	D1		n*М
	A	B	L	PN10	PN16	PN10	PN16
40	70	133	33	110	110	4×М16	4×М16	2,8
50	62	141	43	125	125	4×М16	4×М16	3
65	72	153	46	145	145	4×М16	4×М16	4
80	87	161	46	160	160	8×М16	8×М16	5,1
100	106	178	52	180	180	8×М16	8×М16	7
125	123	193	56	210	210	8×М16	8×М16	8,6
150	138	204	56	240	240	8×М20	8×М20	9,3
200	173	247	60	295	295	8×М20	12×М20	17,5

DN 40-600 mm with gearbox

Butterfly valves of PA 600 series wafer type with threaded lugs. Butterfly valve DN 40 – 600 with worm gear. Image

DN	Dimensions, mm							Weight with gearbox, kg
	A	B	L	D1		n*М
	A	B	L	PN10	PN16	PN10	PN16
40	70	133	33	110	110	4хМ16	4хМ16	3,8
50	62	141	43	125	125	4хМ16	4хМ16	4
65	72	153	46	145	145	4хМ16	4хМ16	5,1
80	87	161	46	160	160	4хМ16	4хМ16	6,5
100	106	170	52	180	180	8хМ16	8хМ16	7,5
125	123	193	56	210	210	8хМ16	8хМ16	10
150	138	204	56	240	240	8хМ20	8хМ20	12,3
200	173	247	60	295	295	8хМ20	12хМ20	21,4
250	207	280	68	350	355	12хМ20	12хМ24	31
300	250	324	78	400	410	12хМ20	12хМ24	53
350	267	368	78	460	470	16хМ20	16хМ24	65
400	312	400	102	515	525	16хМ24	16хМ27	87
450	350	425	114	565	585	20хМ24	20хМ27	125
500	363	485	127	620	650	20хМ24	20хМ30	175
600	459	565	154	725	770	20хМ27	20хМ33	253

Top flange's dimensions and torque for choosing actuator

Top flange dimensions and torque for choosing actuator. Image

DN	Top flange acc. to ISO	Dimensions, mm				Torque, N*m
DN	Top flange acc. to ISO	D	d	I	H	PN10	PN16
40	F07	70	10	11	25	10	10
50	F07	70	10	11	25	19	19
65	F07	70	10	11	25	22	22
80	F07	70	10	11	25	54	54
100	F07	70	10	11	25	66	66
125	F07	70	10	14	25	78	78
150	F07	70	10	14	25	120	120
200	F10	102	12	17	35	228	228
250	F10	102	12	22	30	388	388
300	F10	102	12	22	30	588	588
350	F10	102	12	22	45	750	750
400	F14	140	18	27	50,8	1320	1320
450	F14	140	18	27	50,8	1440	1440
500	F14	140	18	32	57,5	1680	1680
600	F16	165	23	36	70	2640	2640

The dimensions and torque is approximate, for correct selection of electrical and pneumatic actuators it is recommended to consult with the representatives of PromArm company.

Specifications

Flow capacity of valves Kv, m³/h

DN	40	50	65	80	100	125	150	200	250	300
Kv	68	145	225	325	590	1125	1950	3250	5000	7500
DN	350	400	450	500	600	700	800	900	1000	1200
Kv	8620	10416	15215	18959	24869	36200	44300	58000	80600	110500

Reliability parameters of butterfly valves

DN	40-100	125,150	200-300	350,400	450-600	700-900	1000,1200
Mean life, cycles, not less	5500	4500	4100	3500	2500	2100	2000
Warranty life, cycles, not less than	2100	1800	1700	1500	1100	900	750

Warranty

The warranty period is 18 months from the date of putting into operation, but not more than 24 months from the date of sale under condition of observance by the consumer of rules of transportation, installation and operation.

Conservation period - 3 years.

Average service life of body parts is not less than 30 years.

Average life removable parts and components – at least 5 years.
