Concentric butterfly valves

(PA300 series)

Description
Catalog
Design
Classifier
The main overall and mounting dimensions
Specifications
Butterfly valves of PA 600 series

Butterfly valves
catalog

Reference-list

Inquiry form for PA
butterfly valves

Stem extensions for butterfly
valves inquiry form

ПА 342.150.16-02
DN 150 PN 16
body material WCB steel, disk material CF8 stainless steel, seat material EPDM

in stock

Price:
by request

Order

ПА 342.100.16-02
DN 100 PN 16
body material WCB steel, disk material CF8 stainless steel, seat material EPDM

in stock

Price:
by request

Order

ПА 332.100.16-03
DN 100 PN 16
body material GG25 iron, disk material GGG40 iron, seat material EPDM

in stock

Price:
by request

Order

ПА 342.80.16-02
DN 80 PN 16
body material WCB steel, disk material CF8 stainless steel, seat material EPDM

in stock

Price:
by request

Order

ПА 332.150.16-03
DN 150 PN 16
body material GG25 iron, disk material GGG40 iron, seat material EPDM

in stock

Price:
by request

Order

ПА 342.200.16-02
DN 200 PN 16
body material WCB steel, disk material CF8 stainless steel, seat material EPDM

in stock

Price:
by request

Order

ПА 342.50.16-02
DN 50 PN 16
body material WCB steel, disk material CF8 stainless steel, seat material EPDM

in stock

Price:
by request

Order

ПА 332.80.16-03
DN 80 PN 16
body material GG25 iron, disk material GGG40 iron, seat material EPDM

in stock

Price:
by request

Order

ПА 332.200.16-03
DN 200 PN 16
body material GG25 iron, disk material GGG40 iron, seat material EPDM

in stock

Price:
by request

Order

ПА 332.50.16-03
DN 50 PN 16
body material GG25 iron, disk material GGG40 iron, seat material EPDM

in stock

Price:
by request

Order

ПА 342.300.16-02
DN 300 PN 16
body material WCB steel, disk material CF8 stainless steel, seat material EPDM

in stock

Price:
by request

Order

ПА 342.150.16-01 ПА 342.150.16-01 DN150 PN16

ПА 342.150.16-01
DN 150 PN 16
body material GGG40 iron, disk material CF8 stainless steel, seat material EPDM

in stock

Price:
by request

Order

Pages: ← Last Next →
1 2 3 4 5 ... 300 301 302 303 304 (All: 3641)

Description

Butterfly valves series series PA300 is a butterfly valves with a symmetrical disk, and the elastomer seat.

By default, the connection type is wafer, but may also manufacture with flanges or with threaded lugs. When installed butterfly valves do not require additional seals, elastomer seat covers body from both sides and the contraction of the stopper between the flanges provides tightness of the connection.

Seats are available in removable and in-situ option (by means of curing) and have a bi-directional seal without leaks.

The design feature of butterfly valves series PA300 in that the working medium is not in contact with the valve body. Therefore, the working characteristics of the valve depend on the materials of the seat and disk.

Butterfly valves series PA300 are used in a various industries: heating, water supply, ventilation, conditioning, gas supply, etc.

Manufacture and supply:	Acc. to TU 3700-001-55604618-2013
Type of construction:	Butterfly valve with symmetric disk, seat material - elastomer
Nominal diameter:	DN 25 – DN 1200 mm
Nominal pressure:	- PN 6, 10, 16, 25 kgf/cm2
Temperature of working medium:	Up to +180 ° С depending on the seat material
Operation:	– handle DN 25-200 mm – gearbox DN 25-1200 mm – electric or pneumatic actuator DN 25-1200 mm
Leakage class:	«А» acc. to GOST 9544-2015
Main working mediums:	Water, air, natural gas and gaseous products, ammonia gas, petroleum products, hydrocarbons, acids, alkalis, alcohols, sea water
Connection type:	- wafer type with smooth lugs; - wafer type with threaded lugs; – flange type. Connecting flanges according to GOST 33259-2015
Installation position:	Any, except the position "electric actuator down" for valves with electric actuator
Flow direction of the working mediums:	Any
Flow rate of the working medium:	Up to 80 m/s for gases, up to 5 m/s for liquids
Climatic version:	У, УХЛ, Т, ТМ, ТВ acc. to GOST 15150-69
Flow characteristic of valves:	With opening angles from 20° to 70° valves can be used for throttling the flow of working medium
Top flange:	Acc. to ISO 5211

PromArm LLC reserves the right to make changes to the design not affecting functional characteristics of the equipment.

Design

Position	Description
1	Body
2	Disk
3	Seat
4	Stem
5,6	Bushing
7	O-ring
8	Worm gear

Seat materials	Description
NBR	- resistance to oils, lubricants, fuels, natural gas; not resistant to alkali and acid environments, water vapor
EPDM	- resistance to water, alkalis, acids, abrasive materials, air; not resistant to fuels and lubricants, fats
Viton	- resistance to oils, gasoline, diz.fuel, diluted acids and alkalis of medium concentration; - not resistant to ketones, hot water, steam
PTFE	- universal thermal and chemical resistance

Material of body and disk	Description
GGG40	Ductile cast iron
WCB	Сarbon steel for non-corrosive mediums
GG25	Grey cast iron
CF8	Corrosion resistant steel, used in aggressive mediums and at low temperatures.
CF8M	Corrosion resistant steel with molybdenum, used in aggressive mediums and at low temperatures.

Classifier

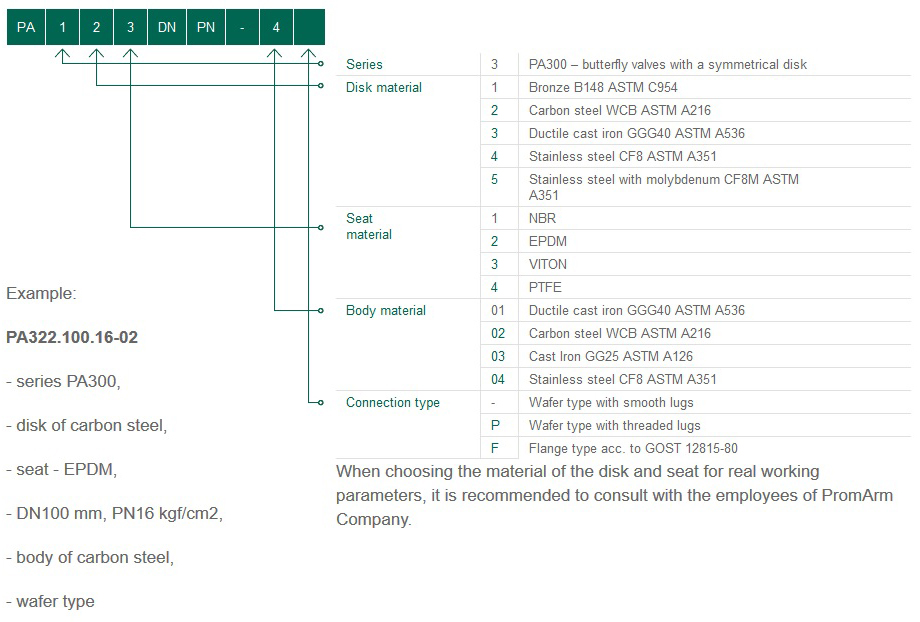

Designation of PA300 series butterfly valves. Image

The main overall and mounting dimensions

Wafer type with smooth lugs

DN 25-200 mm with handle

Basic overall and connection dimensions of wafer type butterfly valves. DN 40-200 with handle. Image

DN	Dimensions, mm							Weight with handle, kg
	A	B	L	D1		n*d
	A	B	L	PN10	PN16	PN10	PN16
25	53	120	26			Four universal holes for PN10, 16		1,6
32/40	54	140	33	110	110			2,9
50	60	140	43	125	125			3
65	67	150	46	145	145			3,7
80	87	158	46	160	160			4,2
100	105	180	52	180	180			6
125	118	190	56	210	210			6,5
150	130	210	56	240	240			8
200	166	235	60	295	295			15

DN 25-400 mm with gearbox

Basic overall and connection dimensions of wafer type butterfly valves. DN 40-400 with reduction gear. Image

DN	Dimensions, mm							Weight with gearbox, kg
	A	B	L	D1		n*d
	A	B	L	PN10	PN16	PN10	PN16
25	53	120	26	85	85	Four universal holes for PN10, 16		2,6
32/40	54	140	33	110	110			4
50	60	140	43	125	125			4,2
65	67	150	46	145	145			4,7
80	87	158	46	160	160			5,2
100	105	180	52	180	180			7
125	118	190	56	210	210			7,5
150	130	210	56	240	240			9
200	166	235	60	295	295			18
250	197	270	68	350	355			29
300	230	310	78	400	410			34
350	255	360	78	460	470			50
400	291	380	102	515	525			85
450	328	400	114	565	585			90
500	387	460	127	620	650			123
600	435	490	154	725	770			230

Wafer type with smooth lugs

DN 700-1200 mm with gearbox

Basic overall and connection dimensions of wafer type butterfly valves. DN 700-1200 with reduction gear. Image

DN	Dimensions, mm							Weight with gearbox, kg
	A	B	L	D1		n*d
	A	B	L	PN10	PN16	PN10	PN16
700	512	635	165	840	840	24×30	24×39	366
800	600	674	190	950	950	24×33	24×39	470
900	656	720	203	1050	1050	28×33	28×39	552
1000	721	800	216	1160	1170	28×36	28×45	760
1200	864	941	254	1380	1390	32×39	32×52	1150

Wafer type with threaded lugs

DN 40-200 mm with handle

Basic overall and connection dimensions of lug wafer butterfly valves. DN 40-200 with handle. Image

DN	Dimensions, mm							Weight with handle, kg
	A	B	L	D1		N*M
	A	B	L	PN10	PN16	PN10	PN16
32/40	54	140	33	110	110	4×М16	4×М16	3,5
50	60	140	43	125	125	4×М16	4×М16	3,8
65	67	150	46	145	145	4×М16	4×М16	4,5
80	87	158	46	160	160	4×М16	4×М16	5
100	105	180	52	180	180	8×М16	8×М16	8
125	118	190	56	210	210	8×М16	8×М16	9
150	130	210	56	240	240	8×М20	8×М20	11
200	166	235	60	295	295	8×М20	12×М20	19

DN 40-600 mm with gearbox

Basic overall and connection dimensions of lug wafer butterfly valves. DN 40-600 with reduction gear. Image

DN	Dimensions, mm							Weight with gearbox, kg
	A	B	L	D1		n*M
	A	B	L	PN10	PN16	PN10	PN16
40	54	140	33	110	110	4хМ16	4хМ16	4,7
50	60	140	43	125	125	4хМ16	4хМ16	5
65	67	150	46	145	145	4хМ16	4хМ16	5,7
80	87	158	46	160	160	4хМ16	4хМ16	6,2
100	104	180	52	180	180	8хМ16	8хМ16	9,2
125	118	190	56	210	210	8хМ16	8хМ16	11
150	130	210	56	240	240	8хМ20	8хМ20	13
200	166	234	60	295	295	8хМ20	12хМ20	22
250	197	270	68	350	350	12хМ20	12хМ24	42
300	230	310	78	400	410	12хМ20	12хМ24	51
350	255	360	78	460	470	16хМ20	16хМ24	67
400	291	380	102	515	525	16хМ24	16хМ27	105
450	328	422	114	565	585	20хМ24	20хМ27	133
500	387	460	127	620	650	20хМ24	20хМ30	180
600	435	490	154	725	770	20хМ27	20хМ33	270

Flanged type

DN 50-150 mm with handle

Basic overall dimensions of the flanged butterfly valves PA 300 series. DN 50-150 mm with a handle. Image

DN	Dimensions, mm							Weight with handle, kg
	A	B	L	D1		n*d
	A	B	L	PN10	PN16	PN10	PN16
50	80	110	108	125	125	4×18	4×18	6
65	80	134	112	145	145	4×18	4×18	8
80	95	131	114	160	160	4×18	8×18	9
100	114	155	127	180	180	8×18	8×18	12
125	113	170	140	210	210	8×18	8×18	14
150	139	180	140	240	240	8×23	8×23	18

DN 50-1200 mm with gearbox

Basic overall dimensions of the flanged butterfly valves PA 300 series. DN 50-1200 mm with a handle. Image

DN	Dimensions, mm							Weight with gearbox, kg
	A	B	L	D1		n*d		Weight with gearbox, kg
	A	B	L	PN10	P 16	PN10	PN16	PN10	PN16
50	80	110	108	125	125	4х18	4х18	10	10
65	80	134	112	145	145	4х18	4х18	12	12
80	95	131	114	160	160	4х18	8х18	13	13
100	114	155	127	180	180	8х18	8х18	17	17
125	113	170	140	210	210	8х18	8х18	19	19
150	139	190	140	240	240	8х23	8х23	24	24
200	175	210	152	295	295	8х22	8х22	31	31
250	203	245	165	350	355	8х22	12х22	51	51
300	223	280	178	400	410	12х22	12х26	64	64
350	254	310	190	460	470	12х22	12х26	70	79
400	306	340	216	515	525	16х22	16х26	120	135
450	315	406	222	565	585	16х26	16х30	142	158
500	378	430	229	620	650	20х26	20х33	160	225
600	440	500	267	725	770	20х30	20х36	260	330
700	510	560	292	840	910	24х30	24х39	360	375
800	560	620	318	950	1020	24х33	24х39	458	470
900	581	692	330	1050	1120	28х33	28х39	550	572
1000	645	735	410	1160	1255	28х36	28х42	792	812
1200	786	917	470	1380	1485	32х39	32х52	1045	1086

Top flange's dimensions and torque for choosing actuator

Reccomendations for installing wafer type buterfly valves PA 300 series. Image 3

DN	Top flange acc. to ISO		D		Dimensions, mm			Torque, H*m
DN	Iron	Steel	Iron	Steel	d	l	H	PN10	PN16
25	F04	F05	42	50	6	11	23	7	8
40	F05	F05	50	50	7	11	23	10	12
50	F05	F07	50	70	7	11	23	18	20
65	F05	F07	50	70	7	11	23	22	25
80	F05	F07	50	70	7	11	23	32	34
100	F07		70		10	11	30	53	57
125	F07		70		10	14	30	80	87
150	F07		70		10	14	30	130	140
200	F10		102		12	17	44	230	266
250	F10		102		12	22	40	390	404
300	F10		102		14	22	40	570	657
350	F12		125		14	22	40	700	810
400	F14		140		18	27	40	960	1105
450	F14		140		18	27	40	1280	1480
500	F14		140		18	27	40	1710	2100
600	F16		165		22	36	50	2680	3050
700	F25		254		18	46	50	4170
800	F25		254		18	46	50	6200
900	F25		254		18	55	60	6950
1000	F25		254		18	55	60	11380
1200	F30		298			60	70	16000

The dimensions and torque is approximate, for correct selection of electrical and pneumatic actuators it is recommended to consult with the representatives of PromArm company.

Specifications

Flow capacity of valves Kv, m³/h

DN	40	50	65	80	100	125	150	200	250	300
Kv	65	138	214	309	561	1069	1853	3088	4750	7125
DN	350	400	450	500	600	700	800	900	1000	1200
Kv	8620	10416	15215	18959	24869	36200	44300	58000	80600	110500

Reliability parameters of butterfly valves

DN	40-100	125,150	200-300	350,400	450-600	700-900	1000,1200
Mean life, cycles, not less than	5400	4400	4000	3400	2400	2000	1900
Warranty life, cycles, not less than	2000	1700	1600	1400	1000	800	650

Average life and warranty life of the sealing materials identified when testing valves with water according to GOST 2874-82

When operating valves for working mediums other than water, the reliability parameters are determined by the specific mediums, depending on its parameters.

Warranty

The warranty period is 18 months from the date of putting into operation, but not more than 24 months from the date of sale under condition of observance by the consumer of rules of transportation, installation and operation.

Conservation period - 3 years.

Average service life of body parts is not less than 30 years.

Average life removable parts and components – at least 5 years.
